MEAN WELL HRPG-1000-12 960W Power Supply – 12V 80A, PFC, Current Sharing up to 4 Units
MEAN WELL HRPG-1000-12 960W Power Supply – 12V 80A, PFC, Current Sharing up to 4 Units
Wholesale Price – Contact Us for Quote
The HRPG-1000-12 is a 960W high-performance AC/DC enclosed power supply from MEAN WELL, delivering 12V at 80A (peak 1000W for 3 seconds) with active PFC. Featuring a built-in current sharing function for parallel operation (up to 4 units, 3+1 redundancy), remote sense, remote On/Off control, and DC OK signal, it is designed for demanding industrial automation, test and measurement, and communication equipment applications.
Why Choose the HRPG-1000-12?
- ⚡ High Power Output: Delivers 80A at 12V (960W continuous, 1000W peak for 3 seconds), ideal for high-current industrial equipment.
- 🔗 Parallel Operation & Redundancy: Built-in active current sharing supports parallel connection of up to 4 units, providing up to 4000W total power or 3+1 redundancy for critical systems.
- 🛠️ Advanced Control & Monitoring: Features remote On/Off control, remote sense function (compensates voltage drops), DC OK signal (TTL), and 5V/0.3A standby output.
- 🌡️ Industrial-Grade Reliability: Wide -40°C to +70°C operating temperature range with built-in variable speed cooling fan and 5G vibration resistance.
- ⚡ High Efficiency & PFC: 91.5% efficiency with built-in active PFC (PF>0.95) for energy savings and compliance.
- 🛡️ Comprehensive Protections: Short circuit, overload, over voltage, and over temperature protection.
- 🛠️ 5-Year Warranty: Backed by MEAN WELL's industry-leading 5-year warranty.

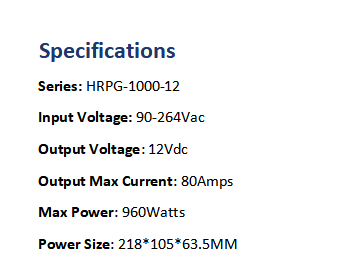

Technical Specifications
| Parameter | Value |
|---|---|
| Model | HRPG-1000-12 |
| Output Voltage | 12V DC (adjustable 11-14V) |
| Output Current | 80A |
| Output Power | 960W (max. 1000W for 3 sec.) |
| Input Voltage | 90 ~ 264V AC / 127 ~ 370V DC |
| Efficiency (Typ.) | 91.5% |
| Power Factor | PF>0.95 |
| No-Load Power Consumption | <0.75W |
| Standby Output | 5V @ 0.3A |
| Parallel Capability | Up to 4 units (4000W total, 3+1 redundancy |
| Protections | SCP, OLP, OVP, OTP, BOP |
| Cooling | Built-in fan with variable speed control |
| Dimensions | 218 × 105 × 63.5 mm |
| Weight | ~1.5 kg |
| Warranty | 5 Years |
Parallel Operation & Redundancy
The HRPG-1000-12 features built-in active current sharing, enabling parallel connection of up to 4 units to achieve higher power or redundancy.
- Increased Total Power: Up to 4000W (4 units in parallel).
- Redundancy (3+1): For critical systems, use 4 units with 1 as standby – if one fails, the remaining 3 continue to supply power.
- Key Requirements: Output voltage difference between units must be less than 0.2V. Use short, large-diameter wiring for optimal load sharing.
Applications
With its 80A high-current output and industrial-grade reliability, this power supply is ideal for demanding applications:
- 🏭 Industrial automation and factory control systems
- 🔬 Test and measurement instruments
- 📡 Communication and network equipment
- 🔦 Laser-related machines and RF applications
- ⚡ Aging test equipment and high-power systems
Why Source from Xuanan Trading?
- ✅ Genuine MEAN WELL Product: Full manufacturer warranty and traceability.
- ✅ Competitive Pricing: Factory-direct sourcing for wholesale and project quantities.
- ✅ Technical Support: Assistance with selection, parallel configuration, and system integration.
- ✅ One-Stop Shop: Combine with LED controllers, connectors, and other components.
- ✅ 24-Hour Reply: Fast response on all inquiries.
👇 Request a Quote
Contact us with your required quantity and target market. We will reply within 24 hours with pricing and lead time.
