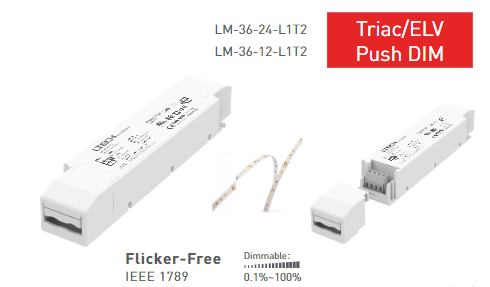

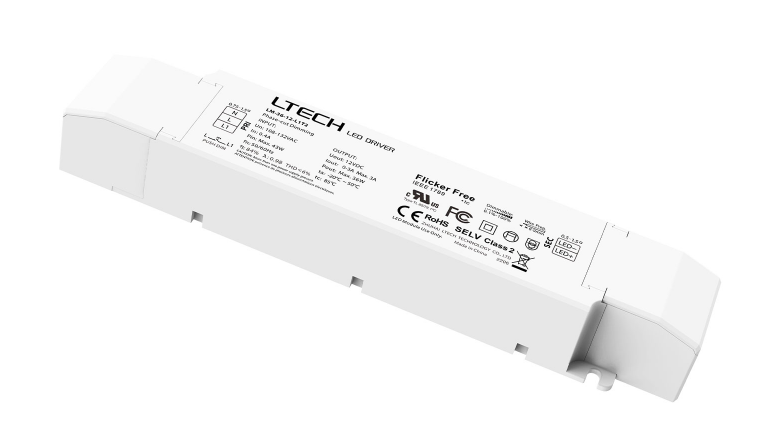

LM-36-12-L1T2 LM-36-24-L1T2 36W 12V 24V CV Triac LTECH LED Driver

Intelligent LED Driver (Constant Voltage)

1. Small size and light weight. The housing is made from V0 flame retardant PC materials that SAMSUNG/COVESTRO uses
2. The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs;
3. With soft-on and fade-in dimming function, enhancing your visual comfort.
4. Dimming from 0-100%, down to 0.1%
5. Support Leadng edge (Triac), Trailing edge (ELV) and push DIM;
6. Innovative thermal management technology intelligently protects the power life.
7. Overheat, over voltage, overload, short circuit protection and automatic recovery
8. Suitable for indoor light applications of I/II/III type
9. Up to 50,000-hour life time
10. 5-year warranty(Rubycon capacitor)

The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased connection built-in constant current IC current-limiting LED fixtures, the driver will activate the overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip. etc.), so that we can prepare them with special procedures.
