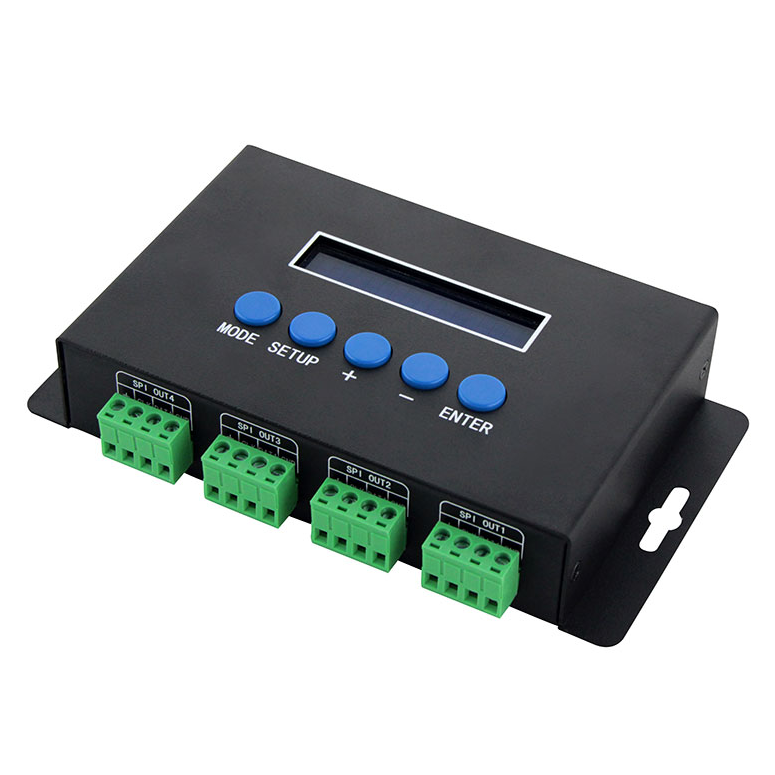

BC-204 Ethernet SPI/DMX pixel light controller
1. Features an intuitive LCD display and a built-in web server configuration interface for user-friendly operation.
2. Supports industry-standard Ethernet DMX protocols including Art-Net and sACN (E1.31) (V2 versions only), with expandability to other network protocols.
3. Equipped with multiple SPI (TTL) signal outputs, supporting control of up to 5440 pixels for large-scale installations.
4. Simultaneous DMX512 signal output enables seamless integration with various types of LED fixtures and conventional DMX devices.
5. Compatible with multiple LED driver ICs (e.g., WS281x, SK6812) through configurable firmware settings, providing flexible control solutions.
6. Supports online firmware upgrades via standard network connections for future feature enhancements and system maintenance.
7. Modular DIP socket design for critical components simplifies field repairs of wiring-related failures or electrical faults.
8. Integrated diagnostic system with visual status indicators and network port LEDs enables real-time monitoring of operational parameters.
Converts Ethernet signals to SPI pixel signals and DMX512 outputs for high-density lighting projects like LED matrix panels and architectural contour lighting. Enables unified control of mixed LED fixtures in a single system.
Software Versions：
- V1: Art-Net protocol
- V2: Art-Net + sACN (E1.31)
Note: V1 cannot upgrade to V2, but V2 can downgrade to V1.
