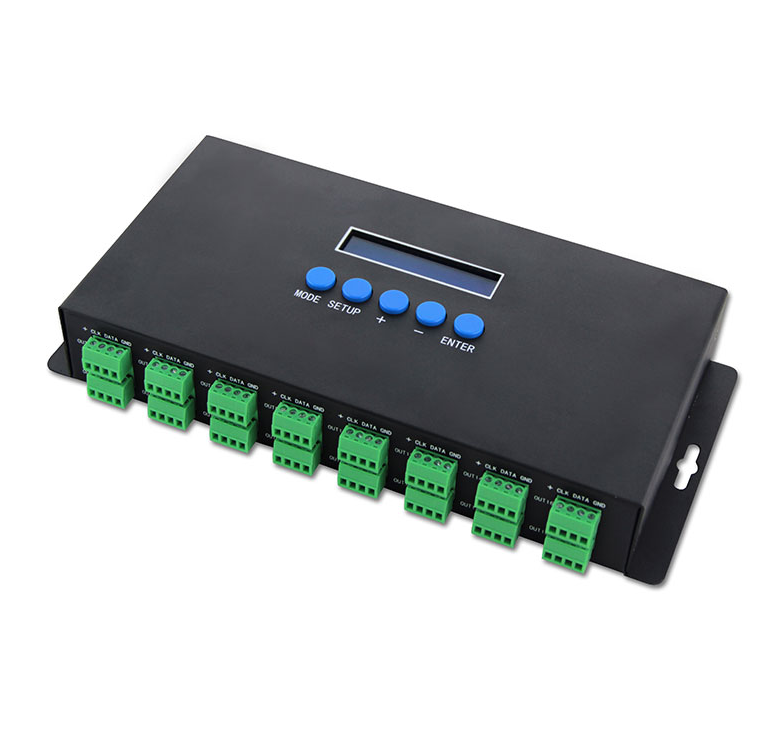

BC-216 Ethernet SPI/DMX pixel light controller
1. Intuitive Operation
Integrated LCD + web server interface for browser-based configuration
Built-in diagnostic mode with status LEDs for instant system monitoring
2. Protocol Support
Art-Net & sACN (E1.31)* compliance (*V2 models only)
DMX512 parallel output for hybrid lighting systems
Expandable protocol architecture
3. Pixel Control Capacity
8× SPI (TTL) outputs
5,440 addressable pixels per controller (WS281x/SK6812 compatible)
4. Maintenance Features
Hot-swappable DIP components for field-repairable circuitry
Network-based firmware updates without disassembly
5. Universal Compatibility
Multi-IC driver support (configurable via firmware)
Automatic signal conversion for mixed fixture environments
Converts Ethernet signals to SPI pixel signals and DMX512 outputs for high-density lighting projects like LED matrix panels and architectural contour lighting. Enables unified control of mixed LED fixtures in a single system.
Software Versions：
- V1: Art-Net protocol
- V2: Art-Net + sACN (E1.31)
Note: V1 cannot upgrade to V2, but V2 can downgrade to V1.
