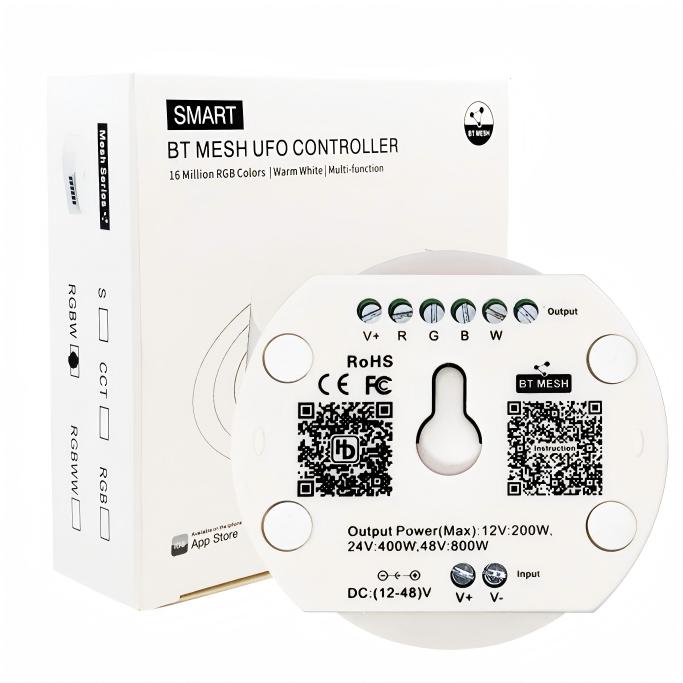

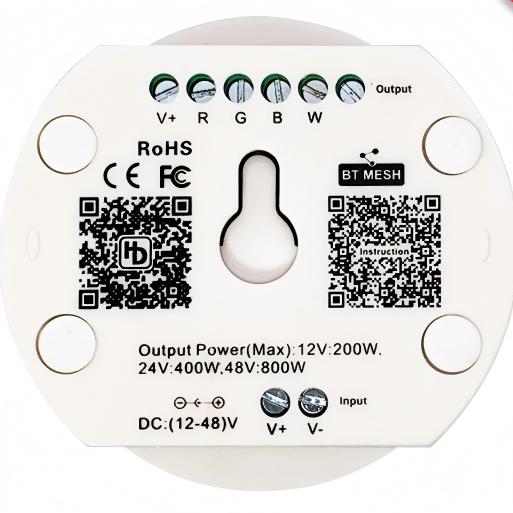

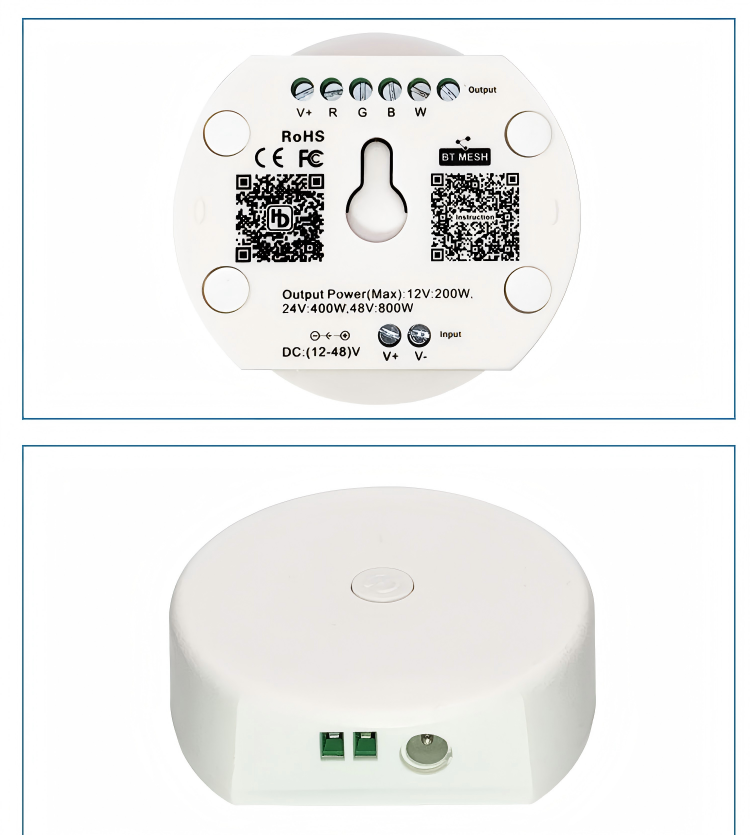

DC12-48V Bluetooth UFO RGBW LED Controller

• Product name: RGBW LED controller
• Control Principle: Bluetooth Mesh
• APP Type: Hao Deng
• Languages: Chinese, English
• Mobile version requirement: Android 6.0 or ISO12.0 or higher
• LED driver type: constant voltage MOSFET
• channel ：4
• Input voltage: DC12-48V
• Maximum power: 12V 200W,24V 400W,48V 800W
• Maximum power of monochromatic white light: 12V 100W,24V 200W,48V 400W
• Application scope: Constant-voltage lighting fixtures such as light strips and panel lights
• Connection method: common anode
• Operating temperature: -20°C to 55°C
• Effective control range: 30 meters
• Warranty: 1 year
• Product weight: 45g
• Product dimensions: 70*70*24mm
• Boxing dimensions: 49*34*22 cm
• Number of units per box: 100 sets per box
• Packing weight: 8.3KG
• (Note: This product can be used with a Bluetooth smart bridge for voice control.)
•


APP Operation Declaration of UFO RGBW LED controller:

Download the Hao Deng app from the App Store or Google Play Store, or scan the QR code.

1) Turn on your device and enable Bluetooth. Tap "Create New Location" to find the device.

2）Music Mode

Click Select Music to import music files. The lighting syncs with the music rhythm, and colors and dynamic effects follow the beat. Four built-in dynamic effects are available: Normal, Classical, Jazz, and Rock.

Note: For the ISO system, download music files to iTunes or import them from your PC as instructed. For Android, simply download the music files to your phone.

3）Camera background color capture

Manual mode: Long press to select a color. The system will automatically detect the camera's current focus point in the color selection area.

Auto mode: The color sampling area is the region the phone camera is pointing at

4）Timed timer function

The controller can automatically turn the lights on and off based on the time you set.

5）Timed timer function

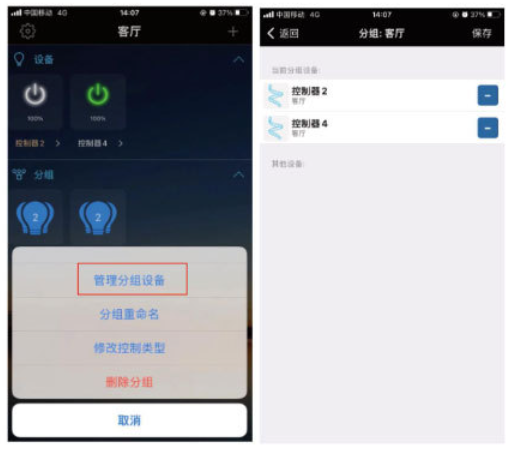

Group multiple controllers together to control them simultaneously.
