12A dual white
DC12-24V 12A Dual Color Touch Remote Dimmer Controller
P Parameter of 12A Dual White LED Dimmer:
Product Name: Dual Color Temperature Touch Dimmer
Input voltage: DC12-24V
Output current: 12A
Remote control battery: AAA*3 batteries (not included)
Operating temperature: -20 to 60°C
Remote control range: approximately 20 meters
Remote control size: 113*55*15mm
Controller size: 82*81*31mm
Outer packaging dimensions: 205*135*47mm
Packaging method: Carton
Net weight: 220g
Gross weight: 365g

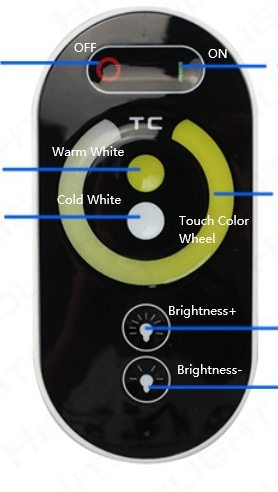

Remote Control Instructions:
Connection Description:
The green indicator light (Receiver) normally remains off. When receiving a remote control signal, it flashes. If the controller output short-circuits, the light flashes at a fixed rate to alert the user of the short circuit.
Red Power Indicator: The power indicator light turns on when the power supply is properly connected.
Product Features of 12A Dual White LED Dimmer:
1.The design is stylish and unique, with a premium feel and a touch of luxury.
2.The remote control is stable and the control distance is far, which can realize the long-distance control.
3.Low power consumption, long lifespan, and unlimited touch operations, overcoming the short lifespan of traditional buttons.
4.The base features 6 secure mounting holes for stable installation. It offers easy and convenient setup with robust stability and long-lasting durability. This design helps you save raw materials and reduce costs.
5.The auto-sleep function automatically switches to standby mode when the touch remote stays buttonless for over 20 seconds, saving power and extending battery life.
6.Equipped with automatic short-circuit protection, the system automatically shuts down the output when a short circuit occurs, with the indicator light flashing. After 10 seconds, the output resumes automatically, or the user can restart the power supply to restore the output.
7.The touch screen features multiple color temperature modes with intuitive operation. Users can select preferred brightness through single-point or continuous touch, ensuring quick and easy selection of desired color temperature.
Connection Diagram of 12A Dual White LED Dimmer:
Matters need Attention:
1、Check that the controller's output voltage and the switching power supply meet the product specifications. Ensure the correct polarity and wiring of the power supply and output lines, as incorrect connections may damage the controller.
2、Do not connect wires under power. After verifying the wiring is correct and there are no short circuits, power can be restored.
3、When installing the battery, avoid touching the remote control's touch ring with your fingers to ensure its sensitivity. Wait 3 seconds after installation before using the remote.
