6A RGB RGBW RGBCCT Controller
DC5-24V 6A RGB/RGBW/RGBCCT Wireless RF Touch Remote Controller
Parameter of 6A RGB RGBW RGBCCT Controller:
Product Name: RGB/RGBW/RGBCCT Controller
Operating temperature: -20 to 60°C
Input voltage: DC5-24V
Maximum output current: 6A
Output power: up to 5V <30W,12V <72W,24V <144W
Connection method: common anode
Controller size: L58*W28*H11mm
Net weight: 55g
Gross weight: 62g
Static power consumption: <0.5W
Product Features of 6A RGB RGBW RGBCCT Controller:
1、Compact design with plug-and-play connectivity for easy wiring.
2、The PET band with bulging remote control surface features a button that provides comfortable and precise tactile feedback.
3、High-quality chips ensure smooth dimming and color adjustment effects.
4、Color, multiple mode options (up to 33 dynamic modes);
5、The RGB/RGBW/RGBCCT controller supports adjustable line sequence.

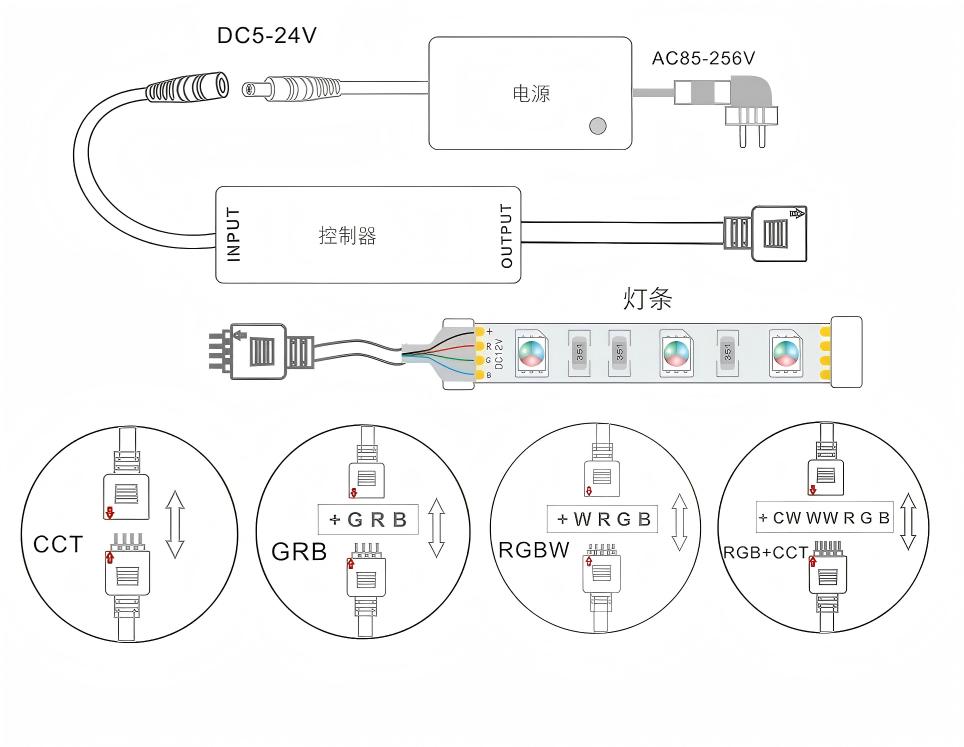

Wiring Diagram of 6A RGB RGBW RGBCCT Controller:
Note: This controller is available in three variants: 4-pin RGB, 5-pin RGBW, and 6-pin RGBCCT.
- 4-pin RGB: Compatible with RGB lights;
- 5-pin RGBW: Compatible with RGBW lights;
- 6-pin RGBCCT: Suitable for RGBCCT lights.
