LT-995-OLED LTECH 5-Channel CV DMX/RDM Decoder – 5A/CH, Up to 600W
stars, based on 0reviews
LT-995-OLED LTECH 5-Channel CV DMX/RDM Decoder – 5A/CH, Up to 600W
Wholesale Price – Contact Us for Quote
The LT-995-OLED is a high-power 5-channel constant voltage DMX512/RDM decoder from LTECH. Featuring a clear OLED display, it delivers up to 5A per channel with a total output of 25A (600W max at 24V). Ideal for high-power RGB, RGBW, and tunable white lighting installations where fewer channels with higher current are required.
Key Features
- ✅ 5 Channels, High Current per Channel: 5A per channel, 25A total, supporting up to 600W (24V) or 300W (12V).
- ✅ DMX512 & RDM Support: Standard DMX control with RDM for remote address setting and diagnostics.
- ✅ OLED Display & Button Control: User-friendly interface for easy parameter adjustment.
- ✅ Flexible DMX Addressing: 8-bit (256 levels) or 16-bit (65536 levels) grayscale for smooth dimming.
- ✅ Advanced Dimming Curves: Selectable Standard, Linear, LOG, or Custom 0.1-9.9 curves for optimized performance.
- ✅ Multiple Interfaces: Equipped with 5-pin XLR, RJ45, and green terminal DMX connections with signal amplification.
- ✅ Robust Protections: Short circuit, overcurrent, and overtemperature protection with auto-recovery.
- ✅ Adjustable PWM Frequency: Configurable for flicker-free dimming across different LED loads.
- ✅ 5-Year Warranty: Industry-leading reliability from LTECH.

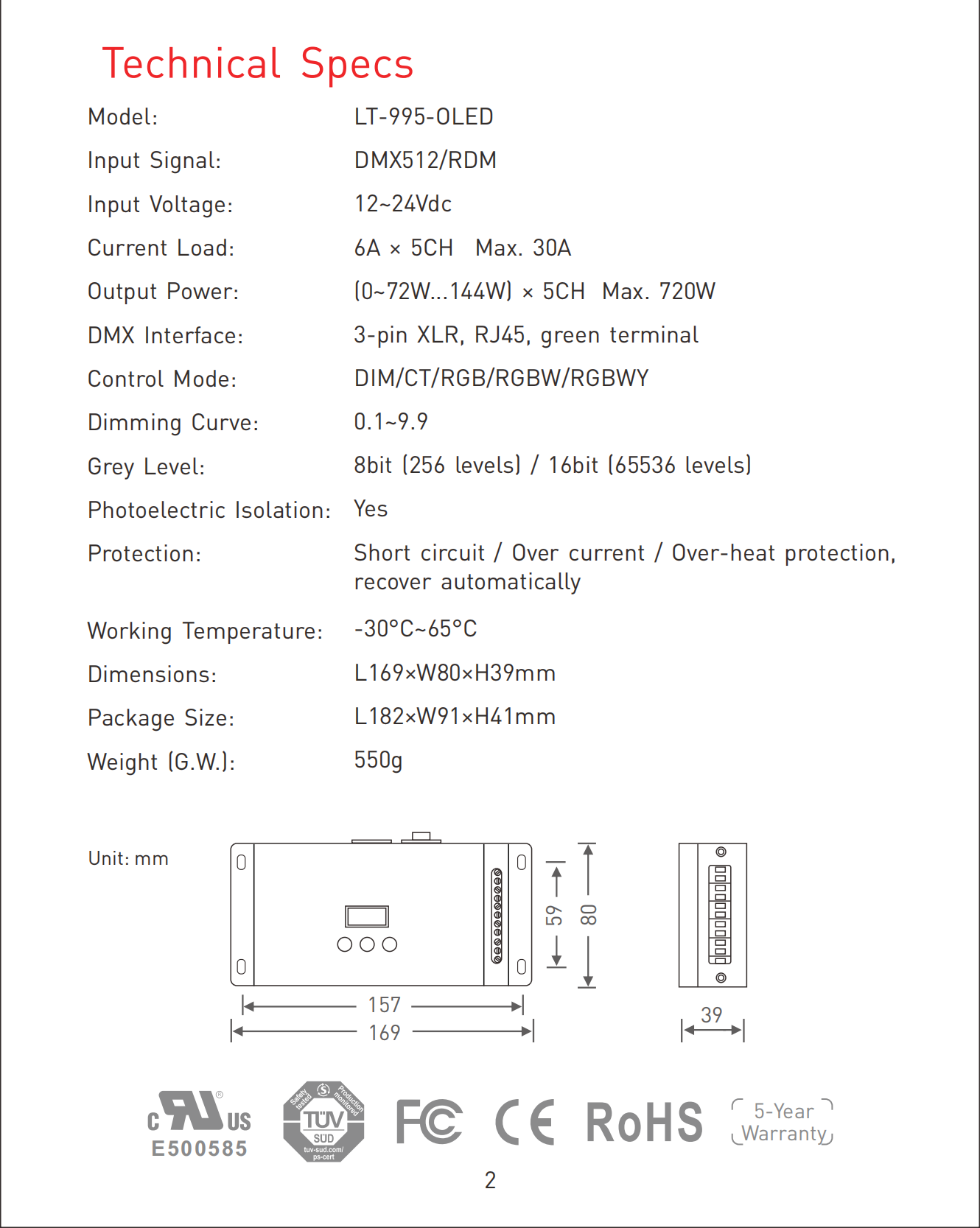

Technical Specifications
| Parameter | Details |
|---|---|
| Model | LT-995-OLED |
| Input Signal | DMX512 / RDM |
| Input Voltage | DC 12V ~ 24V |
| Channels | 5 |
| Current per Channel | 5A (max) |
| Total Output Current | 25A (max) |
| Max Output Power | 600W (at 24V) / 300W (at 12V) |
| Grayscale Levels | 8-bit (256) / 16-bit (65536) selectable |
| Dimming Curves | Standard, Linear, LOG, Custom 0.1-9.9 |
| PWM Frequency | Adjustable (High / Mid / Low) |
| Working Temperature | -30°C ~ 65°C |
| Dimensions | L180 × W122 × H39 (mm) |
| Weight | ~730g |
| Warranty | 5 Years |
Applications
This 5-channel high-current decoder is ideal for professional lighting systems:
- 🎨 RGB/RGBW & Tunable White Projects: 5-channel design suits RGBW (4 channels) + CCT or other 5-channel applications.
- 🏢 Architectural Lighting: Building facades, bridges, and landscape illumination.
- 🎭 Stage & Entertainment: Theatrical lighting, concert backdrops, and set designs.
- 🛍️ Commercial Lighting: Retail displays, hospitality venues, and office lighting.
Why Source from Xuanan Trading?
- ✅ Genuine LTECH Product: Authentic LT-995-OLED with full 5-year manufacturer warranty.
- ✅ Expert Support: Assistance with DMX addressing, RDM configuration, and system integration.
- ✅ Competitive Pricing: Wholesale rates for projects and bulk orders.
- ✅ One-Stop Shop: Combine with LED drivers, controllers, and accessories.
- ✅ 24-Hour Reply: Fast response on all inquiries.
👇 Request a Quote
Contact us with your project requirements (LED type, voltage, quantity). We will reply within 24 hours with pricing and technical recommendations.
