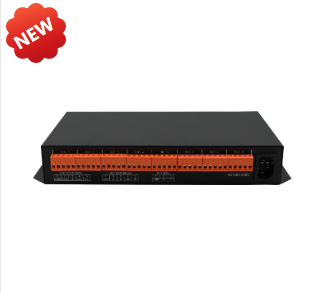

MR-A28A ArtNet Controller

The MR-A28A control system utilizes the ArtNet-over-Ethernet protocol for communication, enabling host software to transmit multi-channel TTL protocol data to SPI lamps. Equipped with a high-performance FPGA processor, it ensures efficient and stable data processing while complying with ArtNet standards. The system features dual RJ45 ports for flexible network topology integration and 8 TTL output ports capable of handling 8×512 data channels with protocol expandability.

Compatible with mainstream lighting control software including Madrix, Pharos, MA Console, and Sunlite, it is widely applied in large-scale LED matrix control, stage lighting, and immersive visual installations for TV studios, live performances, 3D mapping shows, and urban light displays requiring high-density TTL data transmission.

Features：

1. MR-A28A Supports ArtNet Protocol and is Based on TCP/IP Ethernet Protocol;

2. MR-A28A Outputs TTL Level Signals (2 Channels) and Differential Signals (1 Channel);

3. MR-A28A Device Supports Cascade Transmission of 254 Devices；

4. MR-A28A Supports 64 Universer and a Single Port Can be Expanded by 8 Times, That is, 4096 Channels (Depending on Chip Performance)；

5. The User Can Set up Two Different IP Addresses；

6. Support 32-65536 Grayscale 16Bit, Support 262144 Grayscale, Restore image Details;

7. Independent Brightness Control of 3 Primary Colors, Easy to Adjust White Balance;

8. Support R,RB,RGB,RGBW,RGBWY, and Multi-Color Mixing Control;

9. Accurate Gamma Correction Algorithm, in Line With Human Visual Sense;

10. Support 120Hz Frame Rate to Ensure High-definition Display and 3D Requirements;

11. Using Ethernet Interface and TCP/IP Protocol, The Distance is 100 Meters;

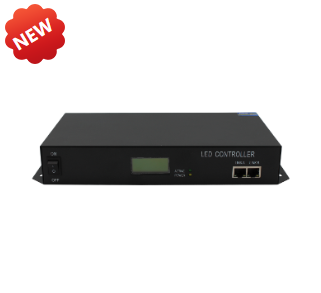

12. The LCD Display Module Displays the Controller Parameters and Status in Time；

13. Support The Device ID Number Data Flow Sequence and Fixed Arrangement；

14. Two RJ45 Ports, Support Mixed Cascading; Automatic Software Display Status;

15. A Variety of Chip Control is Integrated, and we Change the Control Chip Type, Clock Frequency, Duty Cycle, Gray Scale Level and Other Parameters Through Software Setting；

16. Support IP Grouping Function, use Switch Parallel Scheme；

17. 8-Port Output, Unlimited Number of Single-Port Load Points, Self-test;

18. Support Dual backup, a Controller is Broken or a Disconnected Display is Not Affected；

19. Support Device Port Anti-interference and Leakage Design;

20. Support Overcurrent and Overvoltage Protection, Can run for a Long Time;

21. Equipment Network Port, Port OutPut, Surge Protection: 1.5KV;

22. Support Severe Working Environment -40℃-80℃, Normal Operation Without Failure;

23. Network Adaptive or Mandatory 100M Can be Set to Support More Loading;

24. Different Network Segments Can be Set up to Avoid Mutual interference. With Multiple Sets of ArtNet Data in the Same Network ;

25. Support Online One-Key Upgrade of Device Firmware.
