MR-WT35 DMX Handheld Encoder – Touchscreen Address Writer & Tester
stars, based on 0reviews
MR-WT35 DMX Handheld Encoder – Touchscreen Address Writer & Tester
Wholesale Price – Contact Us for Quote

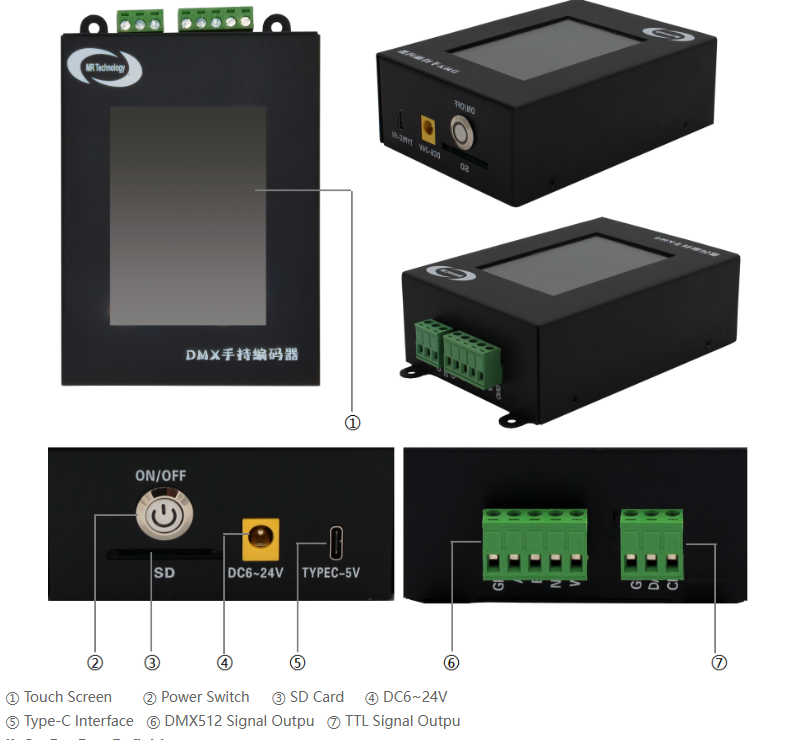

The MR-WT35 is a professional handheld DMX512 address writer and tester. Featuring a 3.5-inch touchscreen, it supports address writing for a wide range of DMX512 chips, built-in test animations, RDM protocol, and SD card scene storage. Ideal for landscape lighting, stage setups, and architectural projects requiring on-site DMX addressing and testing [citation:2].

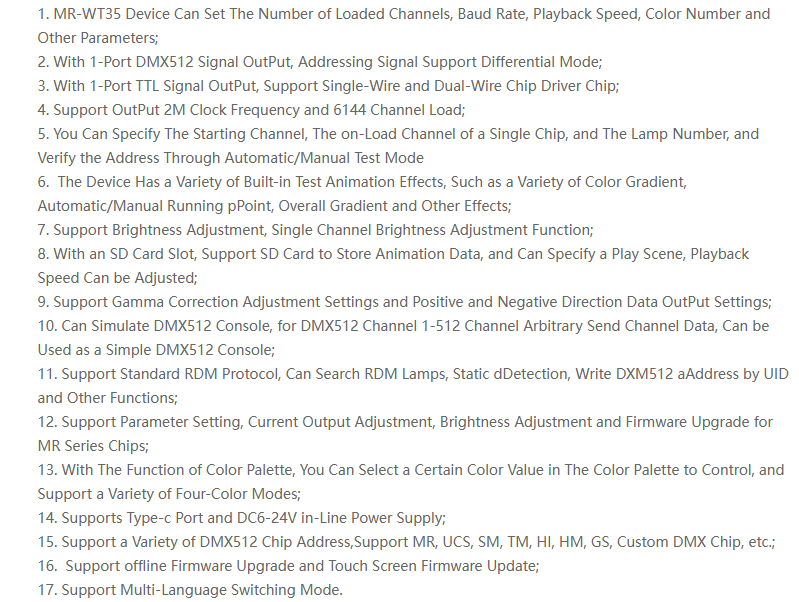

Key Features
- ✅ Touchscreen Operation: 3.5-inch resistive touch LCD for intuitive control.
- ✅ Broad Chip Compatibility: Supports MR, UCS, SM, TM, HI, HM, GS series DMX512 chips.
- ✅ Dual Output Signals: 1-port DMX512 and 1-port TTL signal output.
- ✅ SD Card Storage: Stores multiple scene files for offline playback.
- ✅ Built-in Test Animations: Color gradients, pixel chasing, and overall gradient effects.
- ✅ DMX Console Emulation: Can simulate a simple DMX512 console for channels 1-512.
- ✅ RDM Protocol Support: Search RDM fixtures, static detection, and address writing via UID.
- ✅ MR Series Chip Management: Parameter setting, current output adjustment, brightness, and firmware upgrade.
- ✅ Flexible Power Options: Type-C and DC 6-24V power supply.
- ✅ Industrial-grade Build: IP54 enclosure, suitable for field use [citation:4].

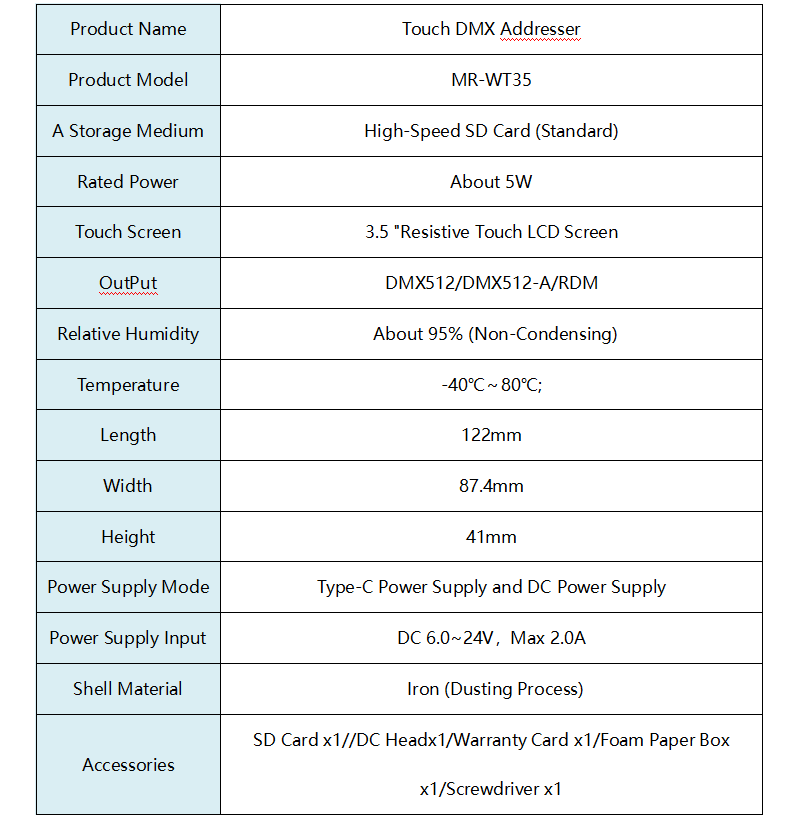

Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Touch DMX Addresser |
| Model | MR-WT35 |
| Touch Screen | 3.5-inch Resistive Touch LCD |
| Output Signals | DMX512 / DMX512-A / RDM, TTL |
| Supported ICs | MR, UCS, SM, TM, HI, HM, GS Series |
| SD Card | High-speed SD card (standard) |
| Power Input | DC 6.0V ~ 24V, Max 2.0A (Type-C / DC) |
| Rated Power | Approx. 5W |
| Working Temperature | -40°C ~ 80°C |
| Protection Level | IP54 |

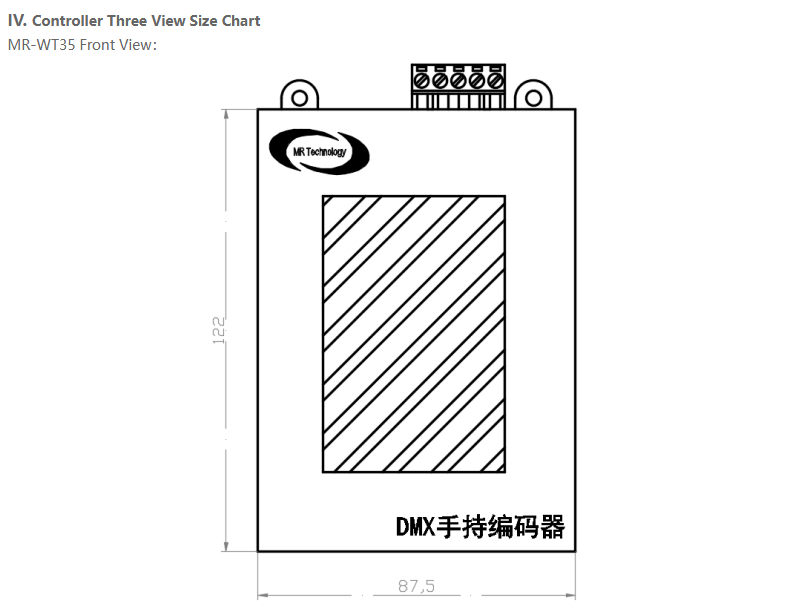

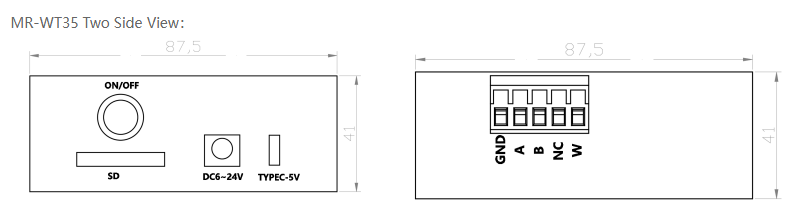

| Dimensions | L122 × W87.4 × H41 mm |
Supported DMX512 IC Series
| Series | Supported Chips |
|---|---|
| MR Series | DMX05, DMX05_JDQ, DMX02 |
| UCS Series | UCS512A, 512B, 512C, 512D, 512E, 512F, 512G6, 512H4 |
| SM Series | DMX512AP, SM16511, SM16512, SM17500, SM18522P, SM19522PG |
| TM Series | TM512, TM512AC, TM512AL, TM512AD |
| HI / HM / GS Series | HI512A0, HM512G, GS8512, etc. |
For full chip support list, please refer to the product manual [citation:2].
Applications
This handheld addresser is essential for professionals working with DMX512 systems:
- 🏢 Architectural & Landscape Lighting: On-site addressing for building facades and bridges.
- 🎭 Stage & Entertainment: Quick setup for theater, concert, and event lighting.
- 🔧 Field Installation & Maintenance: Address writing, testing, and troubleshooting.
- 🎄 Holiday & Decorative Displays: Large-scale pixel and DMX fixture configuration.
Why Source from Xuanan Trading?
- ✅ Genuine MR-WT35 Tool: Authentic product with full specifications.
- ✅ Technical Support: Assistance with chip compatibility and addressing procedures.
- ✅ Competitive Pricing: Wholesale rates for professionals and bulk orders.
- ✅ One-Stop Shop: Combine with DMX controllers, decoders, and LED fixtures.
- ✅ 24-Hour Reply: Fast response on all inquiries.
👇 Request a Quote
Contact us with your chip type, application, and quantity. We will reply within 24 hours with pricing and technical advice.
