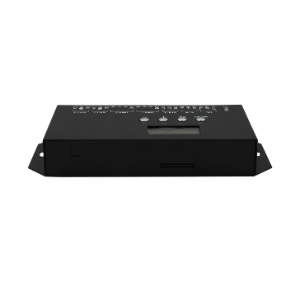

MR-502 Offline controller Simple controller

MR-502 Offline controller Simple controller

MR502 controller has 2 SPI output ports, supports a variety of serial driver chips, can be automatically selected by the user, a single output port load is 1024 points (if the frame rate is not required, the load capacity can be increased, need to test by yourself).

MR502 controller has 2 DMX512 output.

Input Voltage: AC12V/ DC 7.5V-24V/ DC5V
Rated Power: 2W
SD card capacity: 4GB（Factory standard）
Single size: 190.0mm×96.3mm×32.5mm
Interface form: 3Pin Terminal×5 4Pin Terminal×2

Function Overview:

1. 32-65536 grayscale control, can truly restore the image color and details;

2. Use buttons to quickly set controller parameters, such as driver chip type, controller number, program clip, playback speed, lamp brightness;

3. LCD display module timely displays controller parameters and status;

4. Support remote control to set controller parameters, such as driver chip type, controller number, program clip, playback speed and frame skipping frequency, lamp brightness and power on/off time;

5. Support SD card storage of animation data, convenient and fast;

6. Program clips can be independently set to play in year, month, day, time and week;

7. The controller output has 2-port SPI signal output and 2-port DMX512 signal output;

8. Support addressing function for DMX512 decoding chips such as MR-DMX05, DMX512AP, UCS512, etc.;

9. Multiple driver chip controls are integrated, and chip type, clock frequency, duty cycle, grayscale and other parameters can be changed through software settings;

10. Controllers support multiple synchronization modes such as AC power frequency synchronization and synchronization line synchronization;

11. Support DC or AC wide voltage power supply;

12. With time lock encryption function;

13. Support ambient light control, audio light control and other sensor modules (optional) applications, interactive and convenient adjustment of lamp brightness;

14. Support most serial drive LED driver chips, such as: MBI6020, MBI6021, MBI6024, MBI6027, MBI6120, TM1803, TM1804, TM1809, TM1829, TM1913, TM1914, TM1925, TM1926;UCS1903, UCS1909, UCS21912, UCS2903, UCS2909, UCS2912, UCS3903, UCS3912, UCS8903, UCS8904, UCS9812;TLS3001;SM16711, SM16716, SM16703P;LPD1882, LPD1886, LPD6803, LPD8806;WS2801,WS2811; MY9221, MY9231;DM412;CX808;P9813;TLC5971, TLC5973;BS0815, BS0825, BS0901;GW6201, GW6205, GW6230, GW6236;

15. Support standard USITT DMX512/1990 general protocol and extended DMX512 protocol, such as:DMX512, DMX512AP, SM16511, SM16512, UCS512, UCS512C, MY7221, WS2821
